Water Level Control System

How does the Water Level Control System Works?

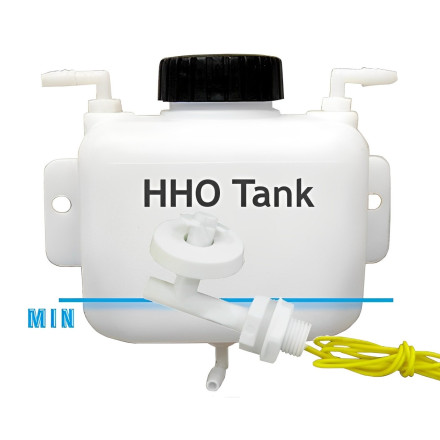

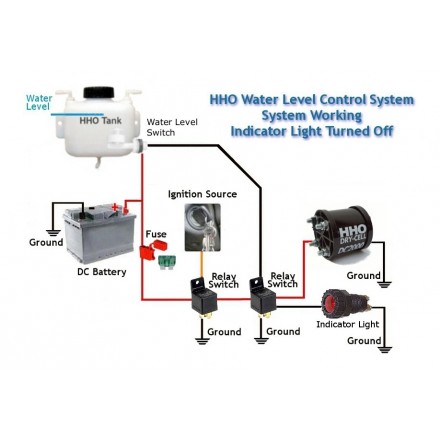

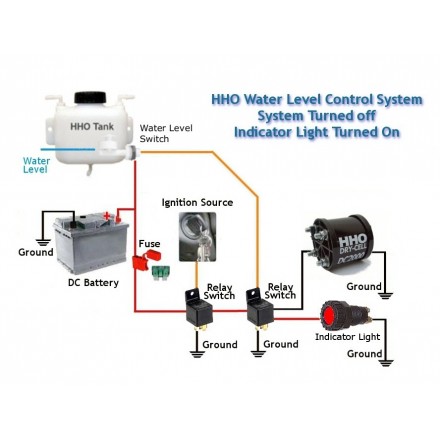

In the water tank, we will install a water level switch that sends an electrical signal whenever the water drops below a certain level. This electrical signal will be connected to an alarm indicator light and a 5-pin relay, which will stop the HHO system from working. Please refer to the illustrative diagrams above for more information.
The indicator light can be installed inside your vehicle, allowing you to immediately see when the water level gets low. Now, you don’t have to stop every time to check the water level in your hydrogen generator.
The amperage in the HHO generator system will remain stable with only small variations.

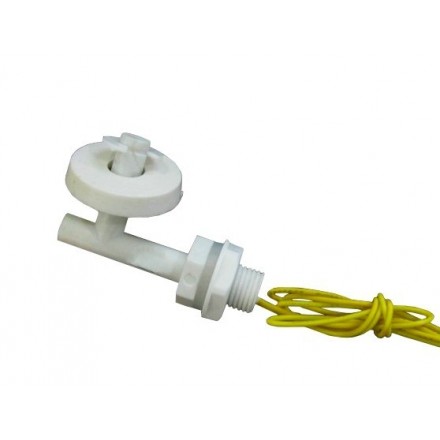

Water level switch Specifications
The water level switch can be used in any type of hydrogen generator reservoir and also be used with in any type of electrolyte and temperature.
- Material: PP
- Max Contact rating: 10W
- Max Switching voltage: 100V DC
- Max Switching current: 0.5A
- Max Breakdown voltage: 220V DC
- Max Carry current: 1.0A
- Max Contact resistance: 100 mΩ
- Temperature rating: -20 to +85ºC.

Parts List of the System
This kit comes complete with all accessories required for the installation:
- Water level switch;
- Red indicator light;
- Control Relay 30A-12V DC - 5 pins;
- Electrical cable HO7V K, 2 mm section, in black;
- Insulated Terminals and acessories for all electrical connections;
- Installation Manual in English (E-book for download).
